| Equipment Type | Roller |
| Rubber Type | Natural Rubber |
| Temperature Rating | -60 – 110 °C |
| Service Type | Relining / Replacement |
| Thickness | 3 mm |
| Lining Type | Sheet Lining |
| Service Duration | 15-30 days |
| Hardness (Shore A) | 70-90 Shore A |
| Hardness (HRC) | 38 HRC |
| Tensile Strength | 20 MPa |

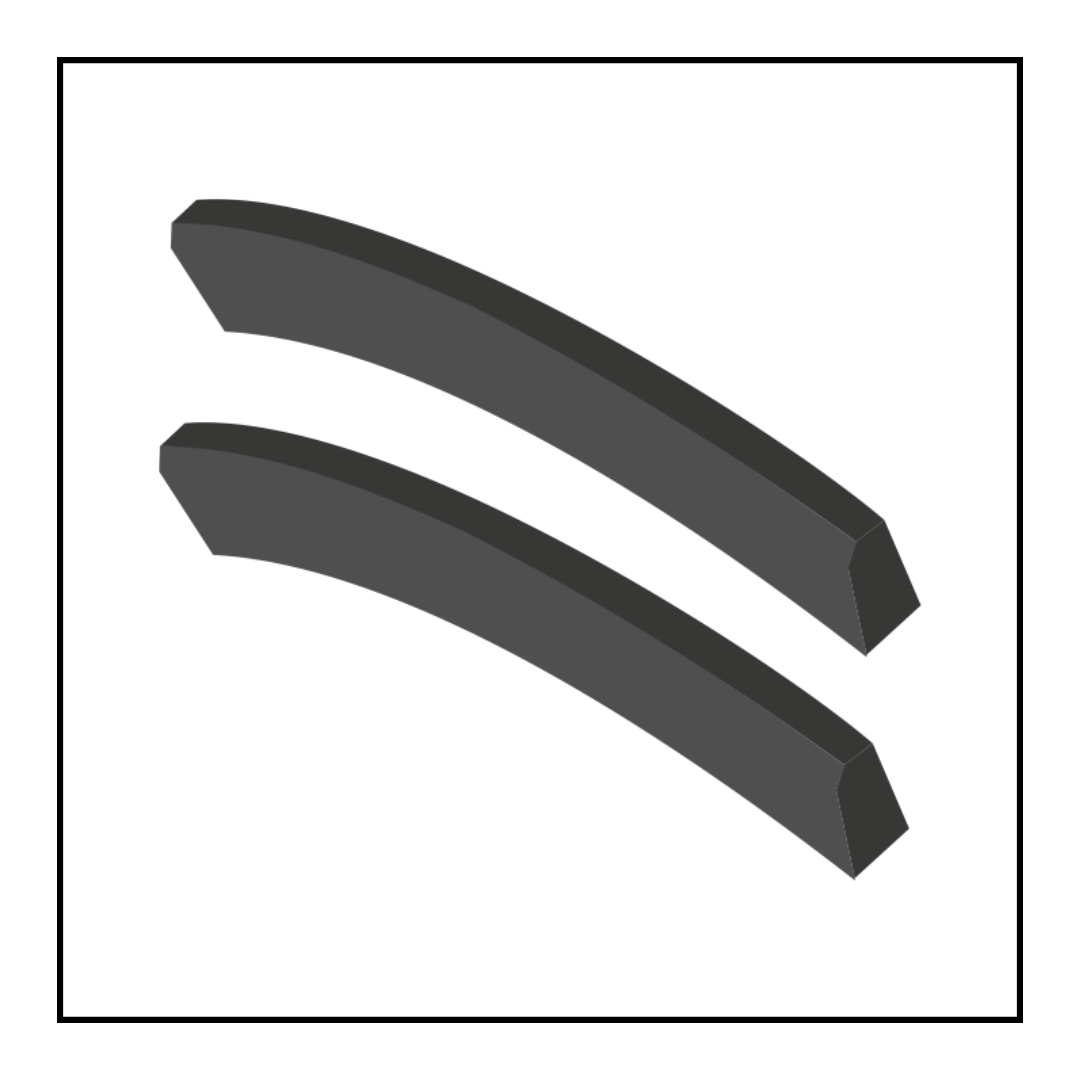

Filling Segment is a specialised rubber lining component that fits into the angular gaps between lifter bars inside a ball mill shell. These gaps, if left unfilled, allow grinding media and slurry to reach the mill shell directly. Direct contact between steel balls and the unprotected shell surface causes rapid metal fatigue, accelerated corrosion, and premature shell failure. Mouldtech Industries in Vadodara, Gujarat engineers Filling Segments that eliminate this gap problem completely — protecting the mill shell, extending liner system life, and reducing unplanned maintenance costs for industrial buyers across India.
A Filling Segment occupies the wedge-shaped space between two adjacent lifter bars along the mill shell’s inner circumference. It works as part of the complete lining system — not as a standalone component. When lifter bars lift grinding media during mill rotation, the filling segment underneath absorbs the return impact and prevents slurry from migrating behind the liner system. Industrial Filling Segments from Mouldtech Industries carry profiles precision-matched to the specific lifter bar geometry installed in the mill. This match eliminates gaps, prevents liner movement, and ensures the entire shell surface stays protected under continuous operating load.
Mills without correctly fitted filling segments develop a specific failure pattern. Slurry penetrates behind the liner system, creates hydraulic pressure during rotation, and eventually lifts liner bolts out of their seats. This bolt-lifting effect causes sudden liner displacement — a critical failure mode that stops production entirely. Procurement managers sourcing mill lining components for ceramic plants in Morbi, mineral processing units in Rajasthan, or chemical grinding facilities in Ahmedabad must treat filling segments as a mandatory part of every liner set, not an optional addition to the order.
Mouldtech Industries produces Filling Segments from NR/SBR/BR rubber compound blends with Shore A hardness between 45° and 65°. The hardness grade selection depends on the mill’s charge material abrasivity, operating RPM, and the hardness of the adjacent lifter bars in the installed system. Softer grades absorb impact energy more effectively in low-abrasivity applications. Harder grades resist surface wear better in high-silica or high-quartz charge environments common across Rajasthan and Gujarat mineral processing plants.
Each Filling Segment goes through hydraulic hot-press vulcanisation. This process bonds rubber to a mild steel or stainless steel backing plate under controlled heat and pressure. Backing plate thickness runs from 6 mm to 10 mm for standard applications. The vulcanisation process creates a monolithic rubber-steel unit that resists delamination under the cyclic compressive and shear loads present in a rotating mill. Dimensional tolerances hold at ±2 mm on all mating faces. This precision ensures flush fit against adjacent lifter bars with zero gap at the contact interface. Ball mill rubber liner products across Mouldtech Industries’ range follow the same production standards, so filling segments, lifter bars, and shell liners from the company install together without fitment issues.
Standard filling segment lengths run from 200 mm to 1,800 mm. Cross-sectional profiles match the angular geometry of the specific lifter bar series — radical, wave, or trapezoidal — installed in the mill. The rubber compound meets BIS standards for industrial rubber goods and handles continuous operating temperatures from -20°C to +75°C. Every batch ships with material test reports (MTR) covering Shore A hardness, tensile strength, elongation at break, and abrasion resistance values. Mouldtech Industries retains these records batch-wise for customer quality audits under its ISO 9001 aligned quality management system.
Buyers who buy Filling Segment in bulk from manufacturer in India gain direct access to factory-level pricing, complete material documentation, and technical support during mill reline planning. Mouldtech Industries dispatches directly from Vadodara, Gujarat to industrial buyers across pan-India. Supply routes cover Gujarat (Morbi, Ahmedabad, Rajkot, Surat, Ankleshwar), Maharashtra (Pune, Nagpur, Nashik, Aurangabad), and Rajasthan (Jaipur, Jodhpur, Udaipur, Bikaner). Bulk order lead times run 7 to 21 working days based on order volume and profile customisation. Minimum order quantity starts at 10 pieces per SKU for standard catalogue profiles.
Tile manufacturers in Morbi running dry and wet grinding ball mills typically order filling segments as part of complete liner sets during scheduled maintenance shutdowns. Filling Segment supply in Morbi from Mouldtech Industries covers both stock-and-ship for standard lifter bar matched profiles and make-to-order for non-standard mill configurations. Sourcing teams in Morbi’s ceramic cluster submit mill drawings or worn component samples and receive matched profile quotations within 24 to 48 hours. This fast technical response prevents the extended procurement delays that cause maintenance shutdowns to overrun their planned duration.
The company moves goods by road freight to tier-2 industrial cities across Gujarat — Bhavnagar, Bharuch, Vapi, and Morbi — and by rail and road to buyers in Maharashtra and Rajasthan. Every shipment carries e-way bill documentation for interstate movement compliance. Packaging runs in moisture-resistant corrugated boxes or wooden crates with clear part number, batch code, rubber grade, and dimensional markings on each unit. This marking system supports receiving inspection and warehouse traceability for procurement teams managing multiple liner SKUs across large mill maintenance programmes.
A certified Filling Segment manufacturer in Gujarat Maharashtra Rajasthan must demonstrate three things to industrial buyers — documented quality systems, batch-level material traceability, and dimensional inspection records. Mouldtech Industries runs its Vadodara production facility under an ISO 9001 aligned quality management system. This system covers rubber compound intake inspection, compound mixing, mould preparation, vulcanisation process control, post-cure dimensional inspection, and finished goods release. Material certificates for rubber compounds and steel backing plates stay on file batch-wise and are available for customer audit visits or remote document review.
As a Make in India aligned manufacturer and registered MSME unit, Mouldtech Industries participates in GeM portal procurement for institutional and government buyers across India. The in-house quality laboratory runs Shore A hardness testers, tensile testing equipment, abrasion testers, and dimensional gauges. All inspection equipment carries current calibration certificates. Ahmedabad and Vadodara based procurement teams that require FAT (Factory Acceptance Testing) before order release can schedule supervised inspection visits to the Vadodara plant. The filling segment system works most effectively when installed alongside geometrically matched side wall circles and head end liners. For reference on complementary discharge-end components, side wall circle manufacturing in Vadodara and head end liner supply from Mouldtech Industries complete the full mill interior lining system.
Choosing the best Filling Segment supplier for industrial use India requires looking beyond unit cost. A filling segment that does not match the lifter bar profile precisely creates micro-gaps that allow slurry ingress. Once slurry penetrates behind the liner system, repair costs far exceed any savings made on the original part purchase. Mouldtech Industries has supplied mill lining systems to ceramic, mining, chemical, and mineral processing plants across Gujarat, Maharashtra, and Rajasthan for over a decade. The company’s technical team supports clients in Ahmedabad, Rajkot, and Jaipur with mill interior audits, liner wear assessments, and profile matching services that prevent fitment failures before they occur.
Factory sourcing teams evaluating B2B manufacturing supply India partners receive structured vendor onboarding from Mouldtech Industries — product samples, dimensional drawings, material test reports, and reference customer introductions on request. The company’s complete mill lining range covers filling segments, lifter bars, shell liners, head end liners, and side wall circles as a geometrically matched system. Sourcing all components from one certified Filling Segment manufacturer eliminates cross-supplier fitment problems, reduces vendor management overhead, and simplifies quality auditing during annual shutdown planning. This consolidated sourcing model delivers measurable time and cost savings for maintenance managers running multi-mill operations in Gujarat and Maharashtra.
Procurement managers can contact Mouldtech Industries with mill diameter, shell length, lifter bar profile type, charge material, and operating RPM. The technical team returns application-specific Filling Segment recommendations with full dimensional specifications within 24 to 48 business hours. This turnaround supports maintenance and procurement teams working against tight shutdown schedules across Gujarat, Maharashtra, and Rajasthan.
+91-9998003813
info@mouldtechindustries.in
Mouldtech Industries produces Filling Segments from NR/SBR/BR rubber blends with Shore A hardness between 45° and 65°. Hardness grade selection depends on charge material abrasivity and the hardness of adjacent lifter bars in the installed liner system. The rubber bonds to a mild steel or stainless steel backing plate of 6 mm to 10 mm thickness through hot-press vulcanisation. Continuous operating temperature tolerance runs from -20°C to +75°C. Every batch ships with material test reports under ISO 9001 documentation standards from Vadodara, Gujarat.
Share mill specs — diameter, shell length, lifter bar profile type, charge material, and operating RPM — directly with Mouldtech Industries. Bulk orders start from 10 pieces per SKU for standard profiles. Full mill reline projects receive complete BOM quotations. Dispatch runs in 7 to 21 working days. Direct supply covers Gujarat, Maharashtra, and Rajasthan with zero distributor markup and full material traceability. Contact Mouldtech Industries to submit your enquiry and receive a quotation within 24 to 48 hours.
Standard Filling Segment lengths run from 200 mm to 1,800 mm. Cross-sectional profiles match radical, wave, or trapezoidal lifter bar geometries. Backing plate thickness runs 6 mm to 10 mm. Custom profiles go against customer drawings or worn component samples with ±2 mm tolerance on all mating faces. Buyers in Jaipur, Jodhpur, and Udaipur mineral processing clusters source these for limestone, feldspar, and lead-zinc grinding applications. Lead time for custom orders runs 10 to 21 working days from drawing approval.
Mouldtech Industries ka manufacturing plant Vadodara mein hi hai. Isliye Filling Segment ki direct factory purchase possible hai — koi middleman nahi, koi extra margin nahi. Mill ka diameter, shell length, aur lifter bar profile type share karein. Company OEM buyers ke liye ±2 mm tolerance ke saath custom profiles banati hai. Material test reports aur ISO 9001 quality certificates har order ke saath milte hain. Gujarat ke manufacturing supply chain mein yeh ek trusted naam hai. FAT visit ke liye bhi plant pe directly appointment le sakte hain.
Morbi ke ceramic tile plants ke liye Mouldtech Industries directly bulk supply karta hai. Standard lifter bar matched profiles ke liye stock-and-ship model hai. Non-standard mill configurations ke liye make-to-order facility hai. Mill drawing ya worn component sample bhejein aur 24 ghante mein matched profile quotation paayein. NR/SBR/BR rubber compound high-abrasivity ceramic charge ke liye specifically suited hai. Koi distributor nahi — seedha factory se supply, poori traceability ke saath. Filling Segment Morbi supply ke liye aaj hi enquiry karein.
Verify these before finalising any OEM Filling Segment supplier in India — ISO 9001 quality management certification, BIS compliance for rubber compound grades, batch-level material test reports covering Shore A hardness and tensile strength, dimensional inspection records, and MSME registration for GeM eligibility. Also confirm backing plate steel mill certificates. Mouldtech Industries in Vadodara, Gujarat provides all documentation with every order. Buyers in Gujarat, Maharashtra, and Rajasthan use this directly in their internal vendor approval and quality audit processes.
