| Material | Natural Rubber |
| Application Type | Steel |
| Liner Type | Ceramic Embedded |
| Brand | MI |
| Thickness | 10 – 40 mm |
| Hardness | 70 Shore A |
| Density | 1.1 g/cm³ |
| Tensile Strength | 22 MPa |
| Puncture Resistance | 500 N |
| Color | Black |
Ceramic Embedded Rubber Liners combine two wear-resistant materials into a single high-performance lining system — alumina ceramic tiles bonded into a rubber matrix that mounts onto equipment surfaces facing extreme abrasion. Standard rubber liners handle moderate abrasion well. Standard ceramic tiles handle extreme abrasion but crack under impact. Neither material alone solves the combined impact-abrasion problem present in high-velocity material handling, fine grinding circuits, and aggressive mineral processing equipment. Mouldtech Industries in Vadodara, Gujarat manufactures Ceramic Embedded Rubber Liners that deliver the abrasion hardness of ceramic with the impact absorption of rubber — giving industrial buyers across India a wear protection solution that outlasts both standalone materials in demanding applications.

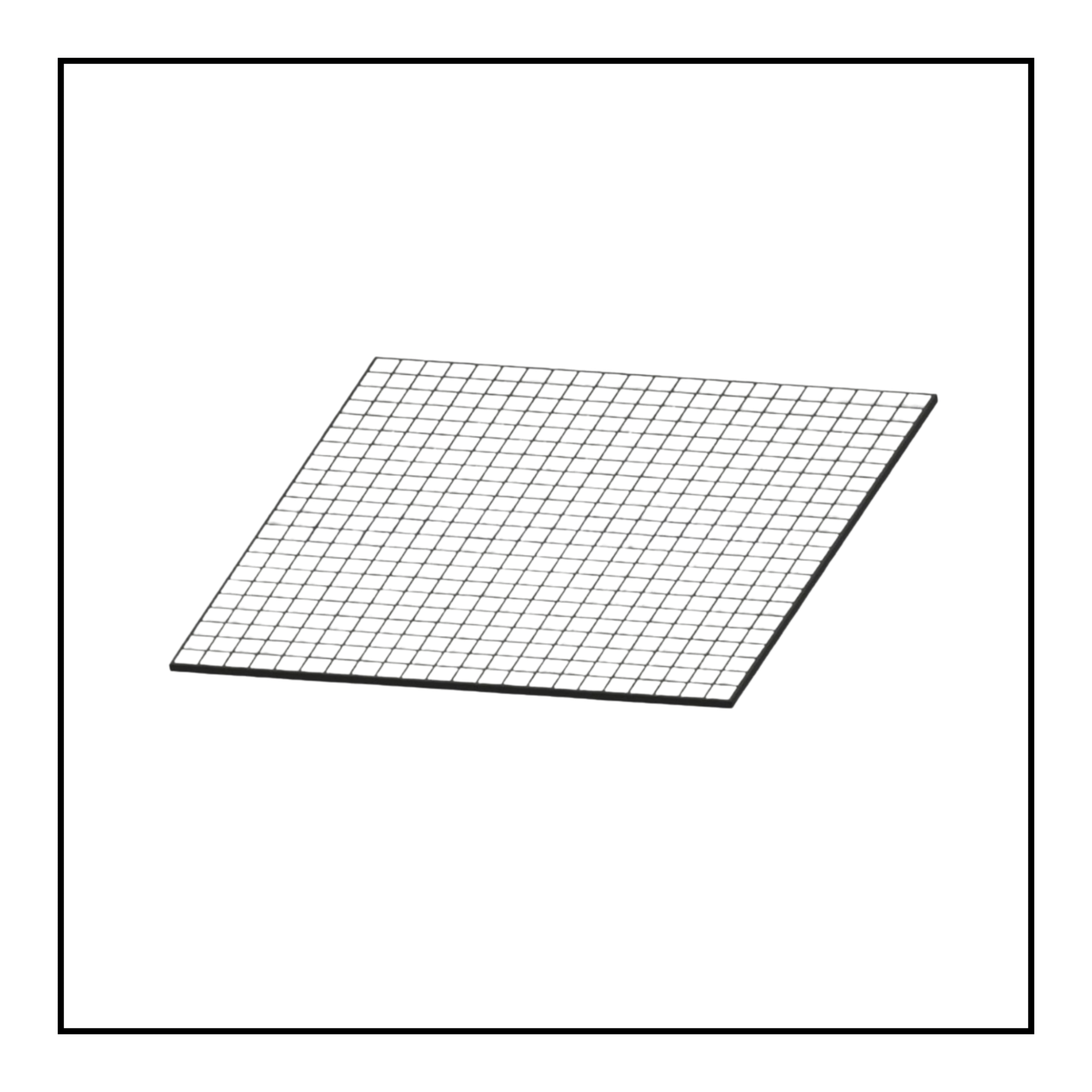

A Ceramic Embedded Rubber Liner consists of alumina ceramic tiles — typically 92% or 95% Al₂O₃ — set in a precisely spaced mosaic pattern and bonded into a vulcanised rubber backing layer. The rubber layer absorbs impact energy from the material stream before it reaches the ceramic surface. The ceramic tiles take the abrasive wear load that would rapidly erode a plain rubber surface. Industrial Ceramic Embedded Rubber Liners from Mouldtech Industries carry tile spacing and rubber layer thickness engineered to balance ceramic coverage density against impact absorption capacity for the specific application — chute linings, hopper interiors, pipe bends, classifier bodies, or mill feed spouts.
The embedded mosaic design also gives the liner a critical advantage over solid ceramic tile systems — when a ceramic tile cracks under a high-energy impact event, the crack stays contained within that tile and its surrounding rubber matrix. Adjacent tiles remain undamaged and the liner continues functioning. In contrast, solid ceramic plate systems propagate cracks across tile boundaries, causing large-section failures that expose the substrate metal immediately. Procurement managers sourcing wear protection for high-velocity mineral streams in Rajasthan, coal handling systems in Maharashtra, or ceramic raw material processing in Morbi find this crack-containment property directly reduces emergency maintenance frequency.
Mouldtech Industries produces Ceramic Embedded Rubber Liners using 92% and 95% alumina ceramic tiles with Vickers hardness between HV 1,100 and HV 1,500 depending on grade. The 95% Al₂O₃ grade suits the most severe fine-particle abrasion environments — fine mineral grinding circuits, classifier feed lines, and high-velocity slurry transfer chutes. The 92% grade offers a cost-performance balance for moderate-to-high abrasion applications across material handling systems in Gujarat and Rajasthan. Ceramic tile dimensions run from 20 mm × 20 mm × 6 mm to 50 mm × 50 mm × 20 mm depending on application geometry.
The rubber matrix uses NR/SBR/BR compound blends at Shore A 45° to 60° hardness — soft enough to absorb impact energy effectively while firm enough to hold ceramic tiles securely under cyclic loading. Rubber backing thickness runs 10 mm to 30 mm. The complete liner panel bonds to a mild steel or stainless steel backing plate through hydraulic hot-press vulcanisation. Wear protection line products across Mouldtech Industries’ range follow the same vulcanisation and inspection standards — ensuring ceramic embedded liners integrate dimensionally with standard rubber wear liners in mixed protection systems. Every batch ships with material test reports covering ceramic tile hardness, rubber Shore A hardness, peel strength between rubber and ceramic, and dimensional inspection records under ISO 9001 aligned quality standards.
Buyers who buy Ceramic Embedded Rubber Liners in bulk from manufacturer in India access factory-direct pricing on a high-specification product where quality variation between suppliers directly translates into service life variation. Mouldtech Industries dispatches directly from Vadodara, Gujarat to buyers across pan-India — covering Gujarat (Morbi, Ahmedabad, Rajkot, Surat), Maharashtra (Pune, Nagpur, Nashik), and Rajasthan (Jaipur, Jodhpur, Udaipur). Bulk order lead times run 10 to 25 working days based on panel size and ceramic tile grade. Minimum order starts at 5 square metres per configuration for standard tile sizes.
Mineral processing plants in Rajasthan running high-velocity limestone, lead-zinc, and feldspar material streams achieve chute liner service lives of 36 to 60 months with correctly specified ceramic embedded systems — compared to 6 to 12 months with standard rubber liners. Ceramic Embedded Rubber Liners in Morbi from Mouldtech Industries serve ceramic raw material handling equipment — bucket elevator boots, feed chutes, and classifier inlets — where fine alumina and feldspar particles cause rapid erosion of plain rubber surfaces. Sourcing teams submit equipment drawings and receive matched panel layouts with ceramic grade recommendations within 24 to 48 hours.
A certified Ceramic Embedded Rubber Liner manufacturer in Gujarat Maharashtra Rajasthan must verify ceramic tile hardness, rubber-to-ceramic bond strength, and rubber compound abrasion resistance — three independent quality parameters that together determine liner service life. Mouldtech Industries tests ceramic tile Vickers hardness on every incoming batch, measures rubber-to-ceramic peel strength on vulcanised test panels, and records DIN abrasion loss values for the rubber compound before production release. The company operates under an ISO 9001 aligned quality management system covering ceramic tile intake, compound mixing, tile placement, vulcanisation, post-cure inspection, and finished goods dispatch.
Mouldtech Industries holds MSME registration and operates as a Make in India aligned manufacturer participating in GeM portal procurement. Procurement teams in Ahmedabad and Vadodara requiring FAT schedule supervised inspection visits to the Vadodara facility. The ceramic embedded liner range works alongside complementary wear protection systems — wear resistant rubber liner supply handles moderate abrasion zones while polyurethane wear resistant rubber liners in Rajasthan cover chemical and oil-exposure environments — giving buyers a complete wear protection solution across all severity levels from one manufacturer.
Selecting the best Ceramic Embedded Rubber Liner supplier for industrial use India requires verifying ceramic tile quality independently — not just accepting supplier hardness claims. Ceramic tile hardness variation between 92% and 95% Al₂O₃ grades produces measurable service life differences in severe abrasion environments. A supplier substituting 92% grade tiles in a 95% grade order delivers a product that looks identical visually but wears out 20% to 30% faster. Mouldtech Industries provides ceramic tile hardness test certificates with every order, sourced from quality-verified ceramic tile producers. Plant engineers in Ahmedabad, Rajkot, and Jaipur use these certificates during equipment maintenance planning to verify liner specification compliance.
The company supplies complete wear protection systems — ceramic embedded liners, standard rubber wear liners, and polyurethane liners — as a matched range covering every abrasion severity level. Procurement managers can contact Mouldtech Industries with equipment type, material stream, particle size, velocity, and current liner service life. The technical team returns ceramic grade recommendations, tile density layout, and panel specifications within 24 to 48 business hours across Gujarat, Maharashtra, and Rajasthan.
+91-9998003813
info@mouldtechindustries.in
Mouldtech Industries uses 92% and 95% alumina ceramic tiles with Vickers hardness HV 1,100 to HV 1,500. The 95% Al₂O₃ grade suits severe fine-particle abrasion environments. The 92% grade covers moderate-to-high abrasion applications. Rubber matrix runs Shore A 45° to 60°. Rubber backing thickness is 10 mm to 30 mm. Every batch ships with ceramic tile hardness certificates, rubber-to-ceramic peel strength records, and DIN abrasion loss values under ISO 9001 standards from Vadodara, Gujarat.
Share equipment type, material stream, particle size, velocity, and current liner service life directly with Mouldtech Industries. Bulk orders start from 5 square metres per configuration. Dispatch runs in 10 to 25 working days. Direct supply covers Gujarat, Maharashtra, and Rajasthan with ceramic tile hardness certificates and full material traceability. Contact Mouldtech Industries to submit your technical enquiry and receive ceramic grade recommendations within 24 to 48 hours.
Ceramic Embedded Rubber Liners from Mouldtech Industries deliver chute and hopper service lives of 36 to 60 months in Rajasthan mineral processing applications handling limestone, lead-zinc, and feldspar. This compares to 6 to 12 months for standard rubber liners in the same applications. 95% Al₂O₃ tiles at HV 1,400 to HV 1,500 handle the most severe fine-particle streams in Jaipur, Jodhpur, and Udaipur processing clusters. Custom tile density layouts optimise ceramic coverage for specific equipment geometries and material stream velocities.
Ahmedabad ke ceramic aur mineral processing plants ke liye Mouldtech Industries sabse reliable option hai. Company Vadodara, Gujarat mein located hai aur har batch pe ceramic tile Vickers hardness test aur rubber-to-ceramic peel strength test karti hai. 92% aur 95% Al₂O₃ dono grades available hain. Equipment type, material stream, aur current liner service life share karein aur 24 ghante mein ceramic grade recommendation aur quotation paayein. Ahmedabad buyers ke liye yeh sabse reliable B2B product sourcing India option hai.
Mouldtech Industries ka manufacturing plant Vadodara mein hi hai. Ceramic Embedded Rubber Liner ki direct factory purchase possible hai — koi middleman nahi. Equipment geometry, particle size, aur velocity share karein. Company OEM buyers ke liye custom tile density layouts aur panel sizes banati hai. Ceramic tile hardness certificates, peel strength records, aur ISO 9001 quality documents har order ke saath milte hain. Gujarat ke manufacturing supply chain mein yeh ek trusted certified manufacturer hai jahan se complete wear protection system milta hai.
Morbi ke ceramic raw material handling equipment ke liye — bucket elevator boots, feed chutes, classifier inlets — Mouldtech Industries directly bulk supply karta hai. Standard tile size configurations ke liye stock-and-ship model hai. Custom panel layouts ke liye make-to-order facility hai. Equipment drawing bhejein aur 24 ghante mein matched ceramic grade aur panel layout quotation paayein. Plain rubber liners ki jagah 95% Al₂O₃ ceramic embedded system service life 3 se 5 times badhata hai. Ceramic Embedded Rubber Liners Morbi ke liye aaj hi enquiry karein.
