| Material | Natural Rubber |
| Liner Material | Rubber |
| Application Type | Chemical Processing Industries |
| Liner Type | Wave Liner |
| Mill Type | Ball Mill |
| Brand | MI |
| Hardness | 280 HB |
| Thickness | 50 mm |
| Lifter Profile | High Lift |
| Casting Method | Shell Mold |
| Bolt Hole Size | 25 mm |
| Liner Finish | As Cast |

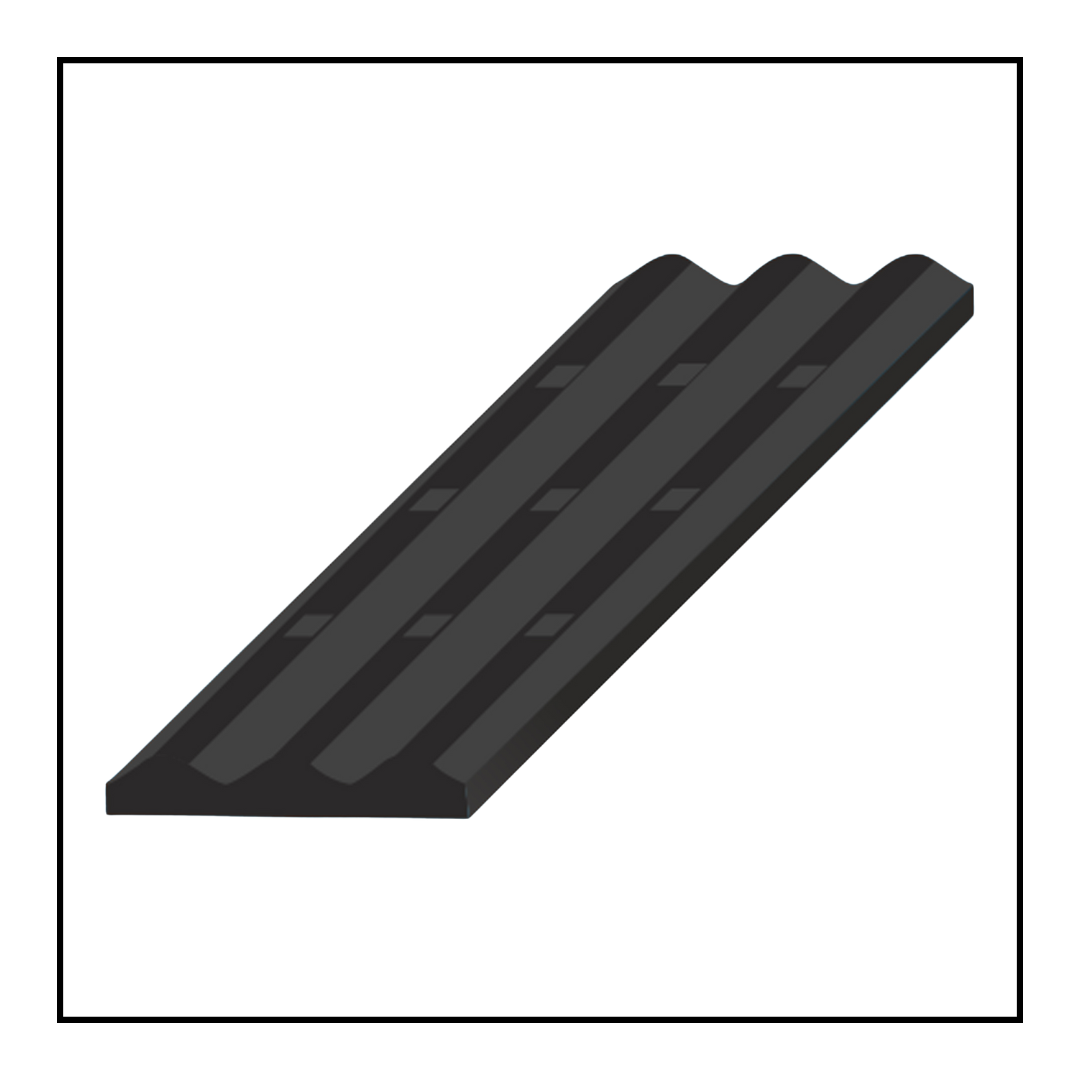

When a feldspar grinding unit in Rajasthan struggles with inconsistent particle size distribution despite correct mill speed and ball charge, or a ceramic manufacturer in Morbi finds that flat-profile liners are failing to generate adequate material lift inside the mill chamber, the engineering problem is almost always liner profile geometry. A correctly profiled liner does not just protect the mill shell — it actively controls the grinding media trajectory, charge cascade pattern, and material retention time inside the mill. The Wave Liner is engineered precisely for this function — a sinusoidal profile rubber lining system that generates controlled charge lift and cascade through its wave-shaped geometry, improving grinding efficiency and liner service life simultaneously.
Wave Liner manufactured by Mouldtech Industries delivers precise wave profile geometry, superior rubber compound performance, and consistent dimensional accuracy across every liner in the mill set — making it the preferred specification for OEM buyers, mineral processors, and B2B industrial procurement teams sourcing ball mill lining systems across India.
A flat shell liner inside a ball mill provides shell protection but contributes nothing to charge dynamics. As the mill rotates, a flat liner surface offers no mechanical lift to the grinding media — resulting in cascading at a lower trajectory, reduced impact energy at the charge toe, and ultimately lower grinding efficiency per unit of energy consumed. The industrial Wave Liner resolves this through its sinusoidal wave profile — the rising face of each wave picks up the grinding media, carries it to a higher trajectory point, and releases it for a more energetic cascade impact directly into the charge.
Procurement managers and OEM sourcing teams across Gujarat, Maharashtra, and Rajasthan who have specified ball mill rubber liner solutions incorporating Wave Liners report consistent improvements in grinding media lift efficiency, particle size distribution consistency, and liner replacement intervals compared to flat-profile alternatives. For B2B industrial buyers managing specific energy consumption targets, a correctly specified Wave Liner delivers measurable reduction in kWh per tonne of material processed — a direct operating cost saving that compounds across every production shift.
The rubber compound used in Wave Liner manufacturing is formulated to 48 to 65 Shore A hardness depending on application — wet grinding operations typically specify 48 to 55 Shore A while dry grinding applications require 58 to 65 Shore A — with tensile strength exceeding 15 MPa and elongation at break above 360%, per IS and DIN material standards. The wave profile geometry — including wave height, wave pitch, and face angle — is maintained within ±0.5 mm dimensional tolerance to ensure consistent charge dynamics across the full liner set.
Mouldtech Industries stands as one of the most trusted Wave Liner manufacturers in India, with deep engineering expertise in sinusoidal profile rubber lining systems for ball mills operating across mining, mineral processing, ceramic, chemical, and cement grinding applications. The ISO 9001:2015 certified manufacturing facility in Vadodara, Gujarat covers the complete production sequence — wave profile tooling fabrication, rubber compound mixing, moulding under controlled pressure, vulcanisation, post-cure wave profile inspection, and dimensional verification — all within a single integrated facility providing direct logistics access to India’s most active industrial corridors.
As a certified Wave Liner manufacturer in Gujarat Maharashtra Rajasthan, Mouldtech Industries serves ceramic tile manufacturers in Morbi, feldspar and quartz processors in Rajkot and Jamnagar, mineral and mining operations in Udaipur and Jodhpur, chemical processing plants in Vadodara and Ankleshwar, and cement clinker grinding facilities across Maharashtra. Every bulk order is supported by full material traceability, compound batch records, wave profile inspection reports, and dimensional certification — giving factory sourcing teams complete incoming inspection capability. The MSME-registered, Make in India aligned production base ensures pan-India supply with consistent lead times and no dependence on imported lining systems for standard wave profile configurations.
Sourcing teams in Ahmedabad, Jaipur, and Vadodara evaluating a Wave Liner supplier must verify six critical parameters before issuing a purchase order: rubber compound grade (natural rubber, SBR, or EPDM based on feed material chemistry and operating temperature), liner thickness range (typically 30 mm to 150 mm overall depending on mill diameter and ball charge), wave height and pitch dimensions (critical for correct charge lift — typically wave height 15 mm to 60 mm and wave pitch 80 mm to 250 mm), profile dimensional tolerance (±0.5 mm), bolt hole pattern accuracy, and vulcanisation cycle parameters determining cross-link density and long-term profile stability.
Mouldtech Industries provides complete technical datasheets with every bulk order — covering Shore A hardness, abrasion loss per DIN 53516, tensile strength, wave profile dimensions, and full dimensional tolerance report — enabling the buyer’s quality team to perform structured incoming inspection against manufacturer-certified values rather than relying on visual acceptance alone.
For mills requiring non-standard wave geometry or application-specific profile modifications, Wave Liner manufacturer in India provides custom wave profile tooling designed to the customer’s mill drawing specifications and grinding application requirements — eliminating profile mismatch errors that compromise charge dynamics and cause premature liner failure in modified mill circuits.
India’s ball mill intensive industries span the full geography of the country — not just metro cities. The ceramic manufacturing clusters of Morbi in Gujarat, the mineral and mining zones of Udaipur, Bhilwara, and Jodhpur in Rajasthan, the feldspar and quartz processing units of Rajkot and Jamnagar, the chemical and pharmaceutical grinding facilities of Pune and Nagpur in Maharashtra, and the paint and pigment manufacturers across Ahmedabad — all operate ball mill capacity where Wave Liner profile geometry directly impacts grinding output and operating cost.
Mouldtech Industries has structured pan-India dispatch capability with moisture-resistant packaging, wave profile protection crating, and mill-set grouped shipments that simplify site inventory management and installation scheduling. The company also manufactures complementary mill internals including Rubber Frames and Side Wall Circles, allowing B2B procurement managers to consolidate complete mill lining system sourcing under a single certified manufacturer — reducing vendor complexity and ensuring full installation compatibility across all mill internals.
OEM buyers and industrial procurement heads evaluating an industrial Wave Liner supplier for long-term supply agreements must assess five operational dimensions: wave profile consistency batch-to-batch, rubber compound stability under cyclic impact loading, custom wave geometry tooling capability, ISO certification and quality documentation, and aftersales technical support for installation guidance and grinding performance analysis.
Wave profile consistency across repeat orders is the most critical factor for multi-mill procurement. The wave height, wave pitch, and face angle must be dimensionally identical across every liner in the set and across every repeat order — because even a 3 mm variation in wave height measurably changes the charge lift trajectory and compromises grinding efficiency across the full mill. This level of tooling discipline and process control separates a serious certified Wave Liner manufacturer from an unorganised supplier operating without documented quality management systems.
Mouldtech Industries maintains in-house wave profile tooling, post-moulding dimensional inspection, compound batch traceability, and ISO 9001:2015 certified process documentation — supporting annual framework contracts for ceramic manufacturers in Morbi, mineral processors in Rajasthan, and chemical grinding plants across Gujarat and Maharashtra. For sourcing managers consolidating their ball mill lining consumables procurement under fewer vendors, single-source mill lining supply delivers measurable gains in installation scheduling, profile consistency, and vendor management efficiency.
To request a technical quotation or discuss bulk supply terms, contact our manufacturing team directly — every serious bulk enquiry receives a detailed technical proposal with wave profile drawings, material specifications, and confirmed lead time commitments in writing.
